Intermittent Label Offset
Printing Machine
nickel machinery

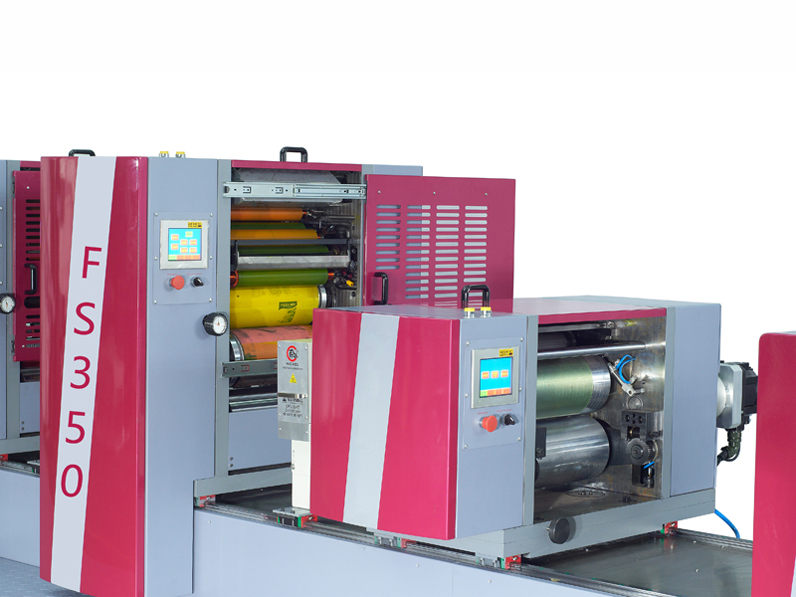

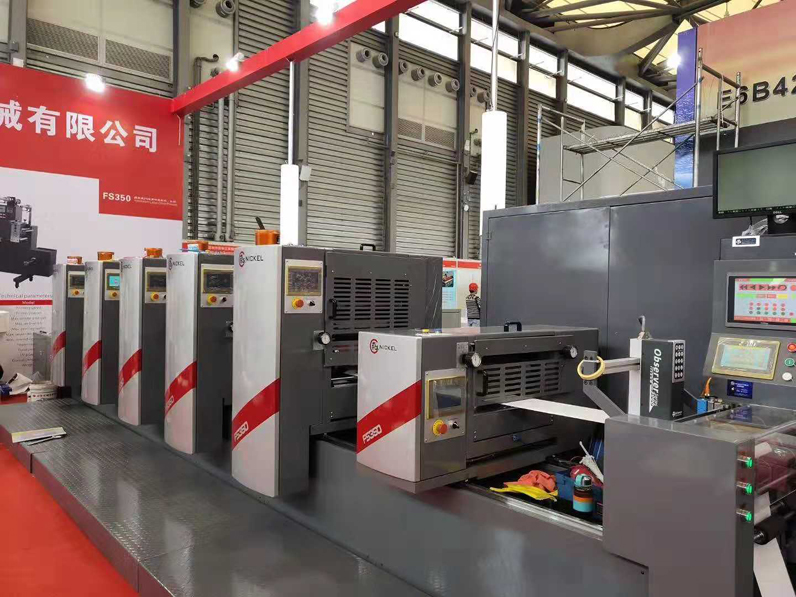

FS350 PS Intermittent Rotary Offset Label Printing Machine
Printing speed: 50-180RPM
Printing colors: 2-10 colors
Max. printing length: 350mm
Max. web width: 360mm
Max. printing width: 350mm
Max. unwinding diameter: 800mm
Max. rewinding diameter: 800mm
Power supply: 3 phase 380V
Total power: 33.6KW (Ex. UV)
UV power: 5KW/unit
Overall dimension: 11000mm X 1600mm X 1850mm (LXWXH)
Weight: About 9.5t
1. LATTICE control system and accurate electric tracking system, simple operation, high efficiency, energy saving and low noise. Die-cutting precision can reaches 0.05mm
2. Advanced German three-point suspension pressure structure.Heavy double ink system: ink supply and ink distributing, for large scale ink printing.Intermittent ink supply, suitable for small volume ink printing.
3. Servo motor: Each printing unit has independent servo motor YASKAWA, fast speed and no color difference.
4. Independent touchscreen: Each printing unit is controled by independent touchscreen. Not just one screen to control all .
5. Registration: no moveaway in speed up and down. No color difference. Precision of registeration is plus and minus 0.05mm
6. Easy plate loading: Automatic plate loading
7. Stopping to check function at rewinder
8. Bearing: Original Japan imported bearing
9. LED beads: Korean LG beads, fast drying and lifetime 20,000 hours.
10. Automatic washup: Each printing unit is automatic washup.
11. Pre-registering: More precision and stable
Optional equipment:
1. Screen printing device
2. Magnetic rotary die-cutter
3. Flexo varnish device
4. Cold foil device
NICKEL MACHINERY
Nickel Machinery Europe, is the partner in the marketing, sales and after-sales service for Europe of Guangzhou Nickel Printing Machinery Co., Ltd.
